Wide Area 60Khz Ultra Nebulizer Function Coating
Description:

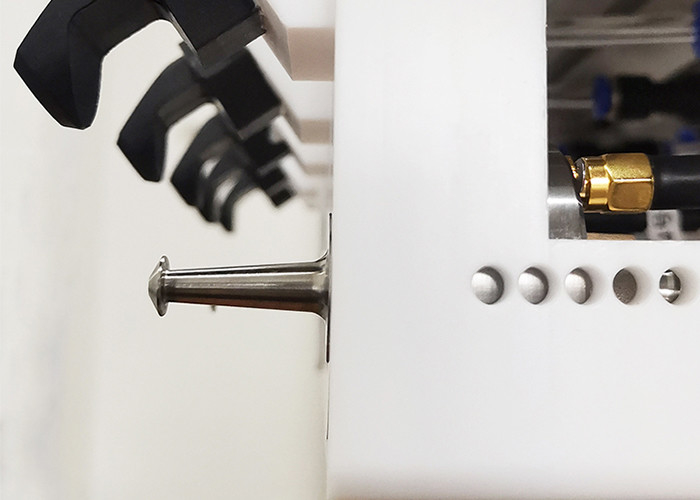

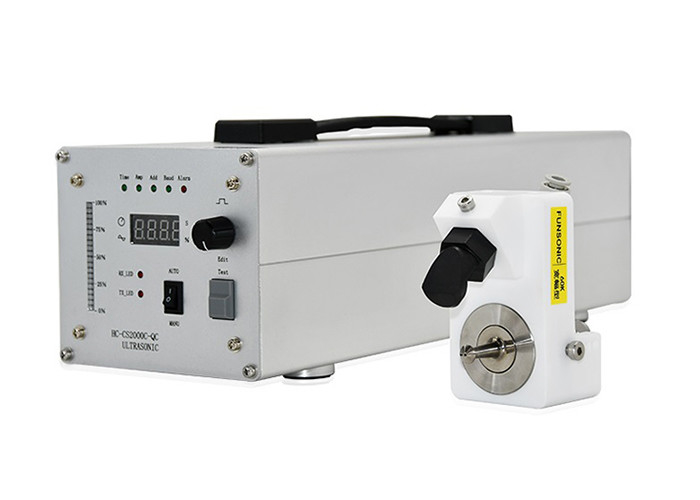

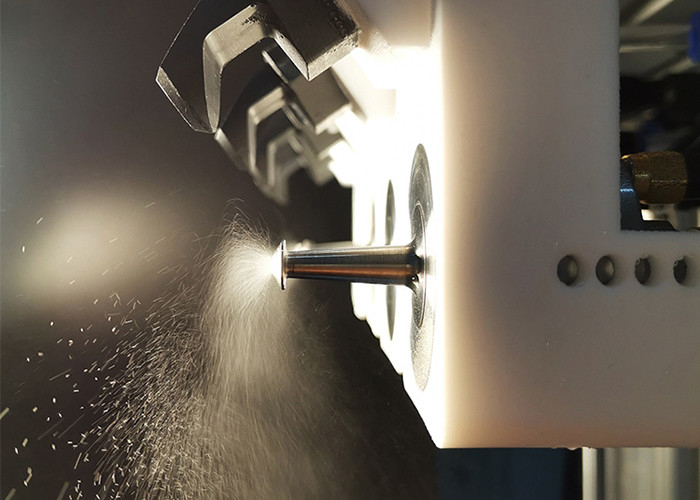

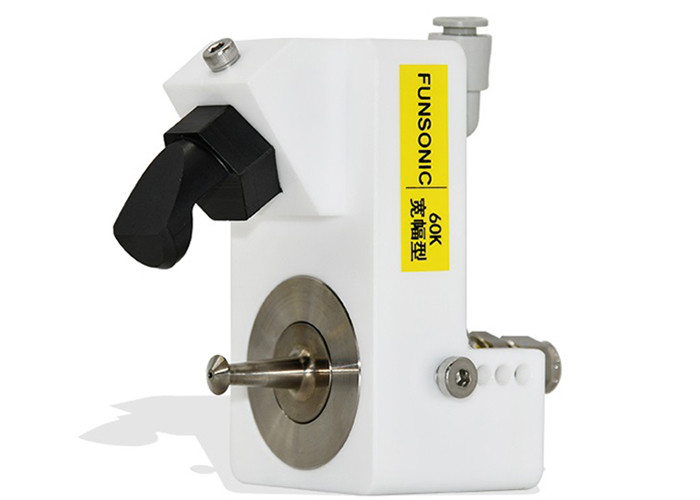

The 60Khz ultrasonic wide range atomization nozzle is a type of nozzle that utilizes ultrasonic technology at a frequency of 60kHz to produce a wide range atomization effect. Compared with conventional atomizing nozzles, wide range nozzles can produce a wider range of atomized particles, thus achieving a wider range of spray coverage.
The 60Khz ultrasonic wide range atomizing nozzle is usually used for applications requiring a wide range of spray, such as industrial spraying, large-area cleaning, agricultural spray, etc. By using 60kHz ultrasonic oscillation, the wide nozzle can disperse the liquid into larger atomized particles, allowing it to cover the target area more widely during spraying.
When using the 60kHz ultrasonic wide range atomizing nozzle, the spray particle size, spray range and spray volume can be controlled by adjusting the frequency and amplitude of ultrasonic oscillation and the design parameters of the nozzle to meet different application needs.
Parameters:
| Type | FSW-6001-L |
| Name | Ultrasonic Wide Type Spray Coating Nozzle |
| Frequency | 60Khz (50/60/120Khz for selection) |
| Atomized particle size range (μm) | 40-120 |
| Spray width(mm) | 30-60 |
| Spray flow(ml/min) | 0.5-20 |
| Spray height(mm) | 50-150 |
| Permissible liquid viscosity(cps) | <30 |
| Allow particle size(μm) | <10 |
| Diversion pressure (Mpa) | <0.05 |
| Application | Suitable for large-area spraying, such as proton exchange membranes, etc |
Ultrasonic Spraying Technology is usually suitable for the following types of Coating :
1. Waterborne coatings: Ultrasonic spraying technology is very suitable for water-based coatings. Waterborne coatings typically have lower viscosity and surface tension, which makes them more susceptible to ultrasonic atomization and dispersion.
2. Solvent based coatings: Some types of solvent based coatings can also be compatible with ultrasonic spraying technology. However, due to the high viscosity and surface tension of solvent based coatings, appropriate adjustments and optimizations may be necessary to ensure spraying effectiveness and coating quality.
3. Certain special coatings: Ultrasonic spraying technology can also be used for certain special coatings, such as powder coatings and nano coatings. These coatings can be better atomized and dispersed under the action of ultrasound, achieving more uniform and accurate coating applications.
However, ultrasonic spraying technology is not suitable for all types of coatings, especially those with high viscosity and surface tension. These coatings may require higher pressure or other spraying techniques to achieve effective application.
Therefore, when selecting coatings, it is recommended to communicate and consult with coating suppliers or ultrasonic spraying equipment manufacturers to determine the most suitable spraying technology for specific coatings and applications.
Wide Area 60Khz Ultra Nebulizer Function Coating
