Description:

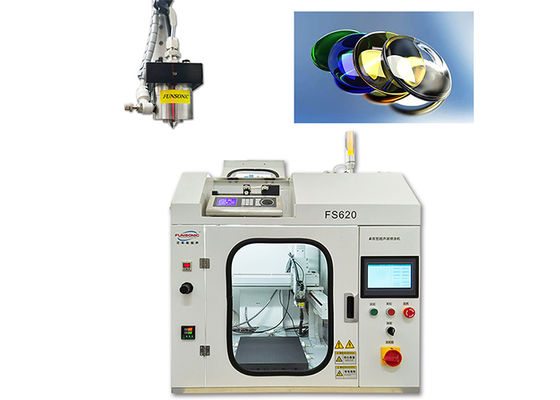

The high-precision ultrasonic lens coating device is an perfect desire for coating purposeful and aesthetic lenses onto glasses or different lenses. The machine is designed to observe anti fingerprint, challenging coating or scratch resistant coating (SRC), anti glare, anti fog, anti fouling, UV blockading agents, coloring (electrochromic), and photoresist to glasses (including bifocal lenses) and shades with excessive accuracy, repeatability, and uniformity. The ultrasonic coating machine is recognised for its specific skinny movie coating and minimal highly-priced answer overspray, changing regular coating strategies such as impregnation and spin coating to minimize waste and reduce overspray.
Parameters:
| Product Type | Intelligent Ultrasonic Precision Coating Machine desktop Type FS620V |
| Spray Nozzle Operating Frequency | 20-200Khz |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | 0.5-10ml/min |
| Effective Spraying Width | 2-100mm |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Dry Film Thickness | 20nm-100μm |
| Solution Viscosity | ≤30cps |
| Temperature Range | 1-60℃ |
| Atomized Particles (Median Value) | 15-40μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.05MPA |
| Input Voltage | 220V±10%/50-60Hz |
| Exercise Mode | XYZ three-axis, independently programmable |
| Control Mode | FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen |
| Control Content | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems |
| Liquid Supply Method | Precision injection pump |
| Ultrasonic Dispersion System (Optional) | 20ml or 50ml, 40K, biological grade sampler |
| Rated Power of Ultrasonic Dispersion System | 100W |
Advantages :
1. Ultrasonic nozzles are corrosion-resistant and not easily clogged
2. The diameter range of spray is 2-100mm
3. Suitable for all fluxes
4. High control accuracy, point spraying, and fast startup speed
5. Stable equipment and low maintenance costs
6. Coating utilization rate>95%
7. Low diversion pressure and no sputtering
8. Multiple series nozzles can be configured
9. Spraying irregular workpieces
Application:
1. Contact lenses
2. Optical lenses
3. Microscope lens
4. Telescope lens
5. Binocular lenses
6. Camera lens
7. Protective glasses (goggles, laboratory glasses)
8. Sports equipment (motorcycle helmet mask, ski goggles, swimming goggles)
9. Photoresist on the oscilloscope lens
